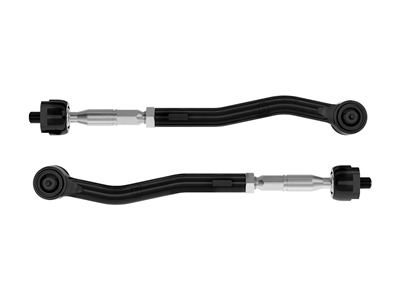

ICON '21+ Ford Bronco XD Forged Tie Rod Kit

ICON '21+ Ford Bronco XD Forged Tie Rod Kit

Alternative Views:


List Price: $432.95
Our Price: $419.95
Savings: $13.00


Free Shipping
Availability: Usually Ships in 1 to 2 Business Days
Product Code: IVD8-45212
Qty:

Description Technical Specs Extended Information

The strength limitations of the Bronco's factory steering tie rods has been well documented, especially by Bronco owners who venture into the big rocks with big tires. These ICON XD Forged Tie Rods remedy this with better materials and beefier dimensions than the stock units.

The inner tie rod and ball stud is CNC machined from 4140 chromoly. The adjustment threads, where we've seen most of the failures happen on stock tie rods, are18mm on the XD Forged Tie Rods versus 14mm on stock Bronco tie rods.

The outer tie rod is forged steel and has the same bend as the stock tie rods for fitting all of the Bronco's factory wheel diameters and offsets, along with just about any aftermarket wheel. The tie rod end is a beefier, metal on metal joint that is greaseable for extended service life. It has the same range of operating angle as the stock tie rod ends.
Features
  • 30% larger diameter then factory HOSS 1.0/2.0 tie rods
  • Forged steel outer tie rod
  • 4140 chromoly inner tie rod and ball stud
  • Greaseable heavy duty automotive tie rod ends
  • Design to fit around factory wheel offsets
  • Includes replacement tie rod boots
