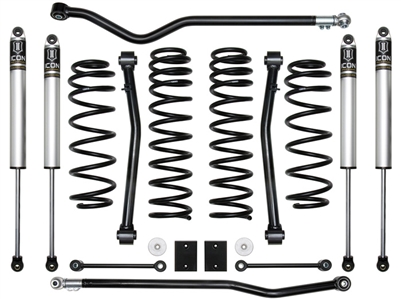

The ICON Vehicle Dynamics Stage 3 2.5" Suspension System for the 2018-UP Jeep Wrangler JL is designed for the driver looking to drastically improve the performance and ride quality of their vehicle. This Stage 3 system includes 2.5" lift dual rate coil springs, Vehicle Specific 2.0 Aluminum Series shocks, adjustable front upper links, tubular steel front lower links, adjustable front and rear track bars, bump stop spacers, sway bar links, and all necessary hardware to complete the installation. With this combination of components, ICON was able to increase wheel travel numbers by over 30% (3" front, 2" rear), redefining the potential of the 2018-UP JL. The front lower links included with this system are constructed from thick wall steel tubing, provide increased castor numbers, and feature dual durometer bushings for noise free operation, maximum articulation, and minimal bind. The Stage 3 system allows for fitment of 35" tires when used with ICON's recommended wheel specifications. For users looking to install 37" tires, an optional bump stop spacer kit (PN: 22029) is available.
System Components:
22026 (QTY: 1) 18-UP JL 2.5" REAR DUAL RATE SPRING KIT
22025 (QTY: 1) 18-UP JL 2.5" FRONT DUAL RATE SPRING KIT
22021 (QTY: 1) 18-UP JL FRONT FIXED LOWER LINK KIT
26524 (QTY: 2) 18-UP JL 2.5" REAR 2.0 VS IR
26523 (QTY: 2) 18-UP JL 2.5" FRONT 2.0 VS IR
22027 (QTY: 1) 18-UP JL FRONT ADJ TRACK BAR KIT
22028 (QTY: 1) | 18-UP JL REAR ADJ TRACK BAR KIT

• • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 w/ 4.75" BS / 0mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22029)

  APPLICATION NOTES:


  • AN ADJUSTABLE TRACK BAR MAY BE NEEDED TO REALIGN THE AXLE FROM LEFT TO RIGHT, OR TO ADD ADDITIONAL STRENGTH
  • SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
  • RECOMMENDED WHEEL AND TIRE FITMENT BASED ON JL RUBICON TRIM
