12K lb Smittybilt X20 Gen 3 Winch with Synthetic Rope
12K lb Smittybilt X20 Gen 3 Winch with Synthetic Rope

Alternative Views:
List Price: $829.99
Our Price: $799.00
Savings: $30.99


Free Shipping
Product Code: SB6-98812
Qty:

Description

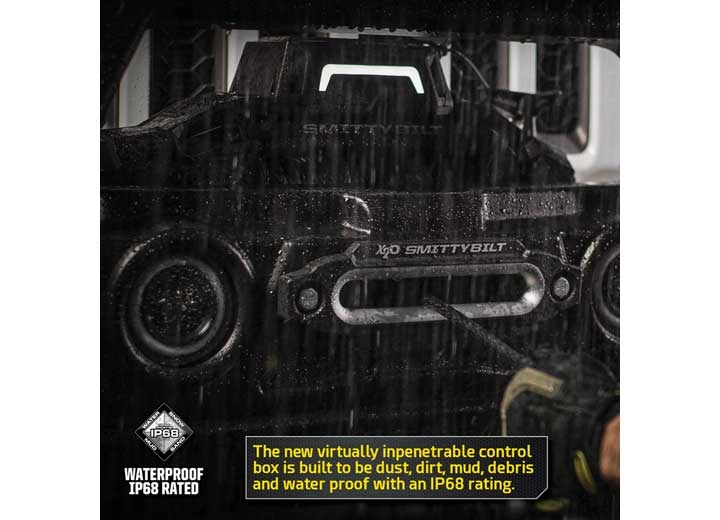

The Smittybilt X2O winches have been enhanced in almost every area for increased performance and trouble free operation. Every X2O GEN3 winch features a series wound 7HP motor that is completely sealed, as well as all-new forged gears. The X2O line features a completely waterproof 500 AMP control box that can be mounted in 2 different locations.

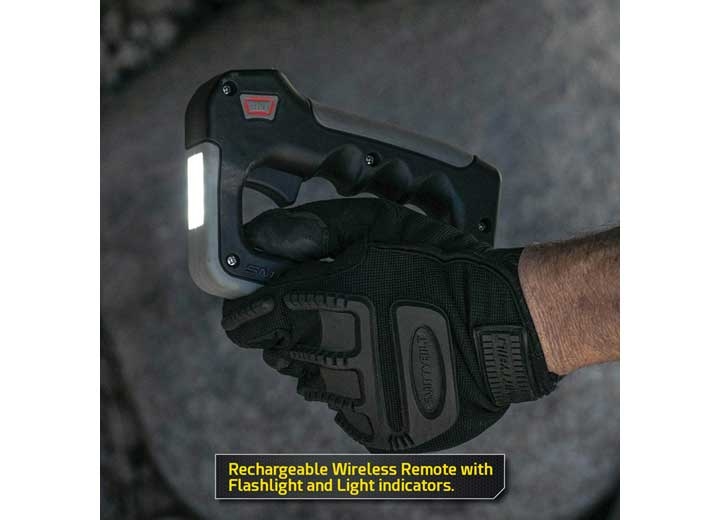

All-new wireless controller with USB connectivity that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that deliver lightning- fast line speeds. The X2O series comes standard with a synthetic winch rope for maximum performance.
Features
  • Not Vehicle Specific
  • Waterproofing: IP68 Rating
  • Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
  • Motor: 7hp Series Wound
  • Control: Remote Switch, 12' (3.7m) lead
  • Gear Train: 3-Stage Planetary
  • Gear Ratio: 216:1
  • Clutch: Sliding Ring Gear
  • Brake: Automatic Out-Of-Drum
  • Drum Size: Diameter 2.5""
  • Cable: 98.5' 3/8"" Diameter
  • Cable Type: Synthetic Rope
  • Fairlead: Hawse
  • Remote Control: Included
  • Integrated Wireless Remote
  • Recommended Battery: 650CCA Minimum for Winching
  • Battery Leads: 25mm2, 72""(1.83m)1
  • Finish: Textured Black
  • Weight: 76.0Lbs (30.4Kgs)
  • Mounting Bolt Pattern: 10.0"" x 4.50""
  • Overall Dimensions: (L x W x H) 22.3"" x 5.4"" x 9.4""
